Glass infrared panel heater- GD-Plus Series

Features

  • High quality glass heater

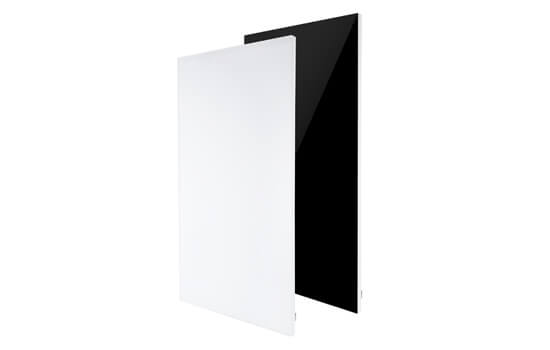

  • Super white or black color
  • Easy-Fit bracket for wall mounting
  • Built-in thermostat receiver
  • Wireless controllable by Sundirect smart thermostat

Model Range

ModelPowerSizeWeightMountingColorsHeated Area
GD400-Plus400W66*66cm12.4Kgwallblack/ superwhite4-8m²
GD600-Plus600W60*100cm16.4Kgwallblack/ superwhite6-12m²
GD800-Plus800W60*120cm20Kgwallblack/ superwhite8-16m²

Find Out More

The Sundirect GD-Plus series is made from high-quality safety ceramic glass combining sophisticated design with optimum heating performance. The nature of ceramic glass allows more infrared rays to pass through compared to regular safety glass. It is available in black and super white which is a true white.

This glass infrared heating panel has a silicon wire heating element that has a heat resistance of up to 200° C resulting in increased durability. The heating element is highly isolated making it very safe. The GD-series glass infrared panel heater is insulated with two layers of high-temperature fibreglass for minimum heat loss towards the backside. The polished steel reflector optimizes the heating performance by reflecting the infrared rays to the front.

The GD-Plus series comes with our Easy-Fit mounting solution that ensures easy and secure mounting.

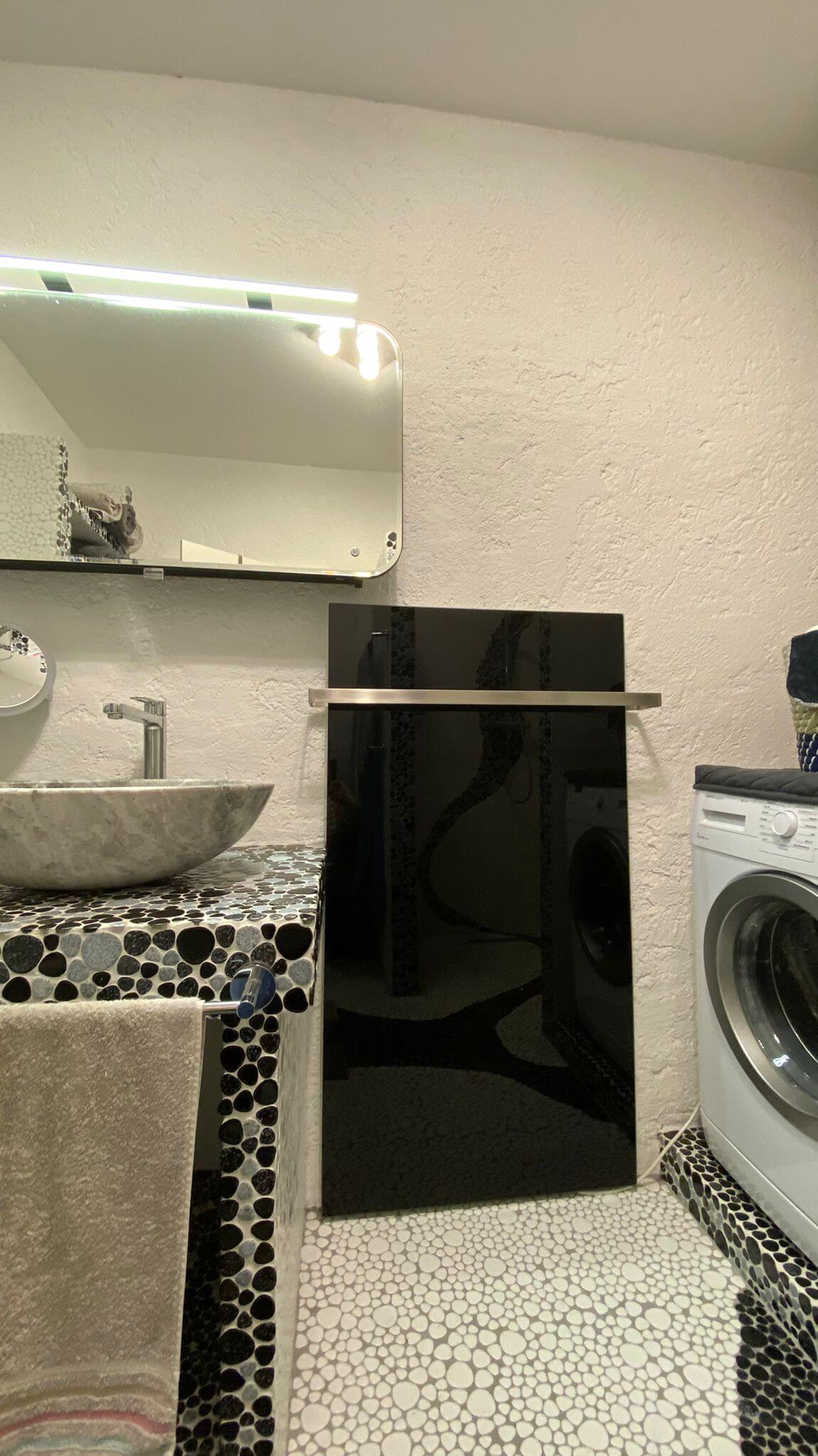

This infrared glass heater has IP44 protection class making it suitable to use in bathrooms. Together with our towel rails TR001 (available in chrome and black powder coated finish), this glass infrared heating panel can optionally be used as a towel dryer.

Equipped with our built-in thermostat receiver it can be wireless controlled by our Smart heating control systems. There are three options (sold separately) for operating your panel. Choose from a battery operated controller (Smart2.0), a mains / USB powered controller (Smart2.0Pro) or plug-in thermostat(SmartPlug). Both Smart2.0Pro and Smartplug are controllable via APP and Alexa. You will find the detail information of our smart thermostat under accessory section.

Model:GD-Plus
Surface:5mm ceramic safety glass
BackWhite powder coated steel
Colour:Super white or black
Heating technology:Silicone heating wire with high temperature resistant
Infrared radiation6 – 12µm
Warm up time7minutes
Built-in thermostat receiverYes
Transmission frequency433MHz, RF connection
Power supply:220-240V, 50-60Hz
IP rating:IP 44
Protection class:I
Plug:Schuko plug with 1.8 cable
Certifications:CE/ GS/ ROHS/ REACH/ SAA
Warranty5 years

Accessory listings:

TR001-Chrome: Chrome finish stainless steel towel rail for GD-Plus

TR001-black: Black color stainless steel towel rail for GD-Plus

Checkout the full details of above accessories

Smart controllers:

Smart2.0: Wireless thermostat(Battery back-up, Non-Wifi)

Smart2.0Pro: Wireless thermostat(Main power, Wifi)

Smartplug: Wireless thermostat(Plug-in type, Wifi)


Works With

Smart2.0

Wireless Thermostat

Smart2.0 Pro

Wireless Wifi Thermostat

SmartPlug

Wifi Plug-In Thermostat
